Rawlplug® KEM-II Styrene-Free Polyester Resin - Universal Bonded Anchors
Verified by manufacturer 2 days ago
European Technical Assessment (ETA)
Certificate type
European Technical Assessment (ETA)
Certificate type
Certificate of constancy of performance
Certificate type
Certificate of constancy of performance
Certificate type
Universal polyester (styrene-free) resin approved for use in non-cracked concrete and masonry.
Application
Used for bonding threaded rods in non-cracked concrete and masonry. Also natural stone (after site testing).
Masonry and concrete applications:
- Cable trays; ladders; handrails; consoles; railings; gates; canopies; sanitary appliances.
Masonry applications:
- Window elements.
Concrete applications:
- Staircases; high racking; steel constructions.
Description
Universal polyester (styrene-free) resin approved for use in non-cracked concrete and masonry.
Features and benefits:
- Approved for use in non-cracked concrete (EAD 330499-01-0601), working life up to 100 years, or for 15 substrates (masonry).
- Available in a winter version with faster curing time. Can be used from -20°C.
- Three colours: standard, stone and grey.
- The most convenient bonded anchor for general purpose use.
- Quick, secure and simple installation.
- Product with wide spectrum of use in the medium load capacity area.
- Working life up to 100 years.
- Ideal for applications where mechanical anchors are not suitable.
- Easy dosage thanks to patented self-opening system and use of manual or electric gun.
- Option to use standard manual silicone gun.
- Masonry versions are suitable for multiple use. Partly used product can be reused after fitting new nozzle.
General information
Color | White Grey |
Finish | Other |
Material | Polyester Steel |
Shape | Formless Circle |
Length | 110 mm 130 mm 160 mm 170 mm 190 mm Manufacturer guidanceR-stud lengths; resin is formless. |
Width | 8 mm Guidance for specification option: M8. 10 mm Guidance for specification option: M10. 12 mm Guidance for specification option: M12. 16 mm Guidance for specification option: M16. 20 mm Guidance for specification option: M20. Manufacturer guidanceR-stud diameters; resin is formless. |
Height | 8 mm Guidance for specification option: M8. 10 mm Guidance for specification option: M10. 12 mm Guidance for specification option: M12. 16 mm Guidance for specification option: M16. 20 mm Guidance for specification option: M20. Manufacturer guidanceR-stud diameters; resin is formless. |
Uniclass |
SKU Code | R-KEM-II-175,R-KEM-II-300,R-KEM-II-410,R-KEM-II-300-W,R-KEM-II-300-S,R-KEM-II-175-SET,R-KEM-II-300-SET,R-KEM-II-300-STONE,R-KEM-II-410-STONE,R-KEM-II-300-GREY,R-KEM-II-410-GREY,R-KEM-II-300-SV |
Sustainability data
Material | Polyester Steel |
Product certifications
Certification type
European Technical Assessment (ETA)
European Technical Assessment - RAWL R-KEM II/ RAWL R-KEM II-S/ RAWL R-KEM II-W and RAWL RM50/ RAWL RM50-S/ RAWL RM50-W
European Technical Assessment (ETA)
European Technical Assessment - R-KEM II/ R-KEM II-S/ R-KEM II-W and RM50/ RM50-S/ RM50-W
Certificate of constancy of performance

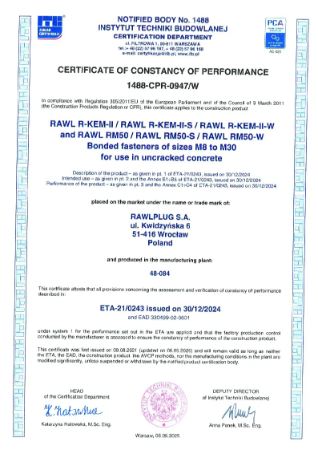

R-KEM-II Concrete CERTIFICATE OF CONSTANCY OF PERFORMANCE
Certificate of constancy of performance

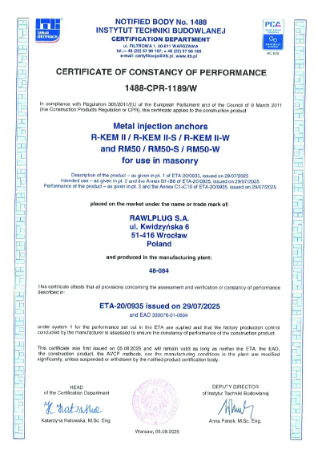

R-KEM- II Masonry CERTIFICATE OF CONSTANCY OF PERFORMANCE
Literature
Literature type
Rawlplug® KEM-II Styrene-Free Polyester Resin, Masonry - Technical Data Sheet
Rawlplug® KEM-II Styrene-Free Polyester Resin, Concrete - Technical Data Sheet
R-KEM-II, R-KEM-II-W, R-KEM-II-Grey, R-KEM-II-Stone : Safety Data Sheet (SDS)
R-KEM-II, R-KEM-II-S, R-KEM-II-W : Safety Data Sheet (SDS)
R-KEMII 20MPa Brickwork Datasheet
R-KEMII 15MPa Brickwork Datasheet

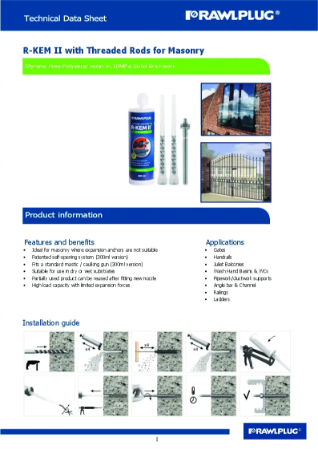

R-KEMII 10MPa Brickwork Datasheet

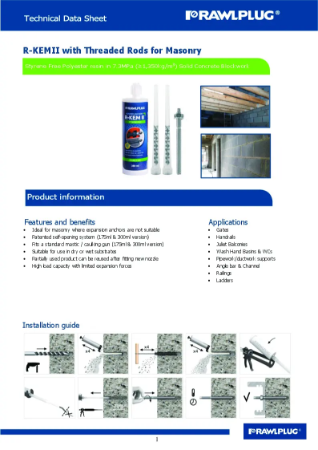

R-KEMII 7.3MPa Medium Density Solid Block UK Datasheet
R-KEMII 7.3MPa High Density Solid Block UK Datasheet
R-KEMII 3.6MPa Solid Block UK Datasheet
