IKO Permatrack H Bridge Expansion Joint System

Name: IKO Permatrack H Bridge Expansion Joint System
Brand: IKO UK
SKU: wAuaCZpNmgx3idVJe9DLtX

Verified by manufacturer 4 days ago

IKO UK

Heavy duty, flexible bridge expansion joint system for highway structures with +/- 20 mm longitudinal movement range.

Jump to:

+44 (0)1257 255 771 Website

Application

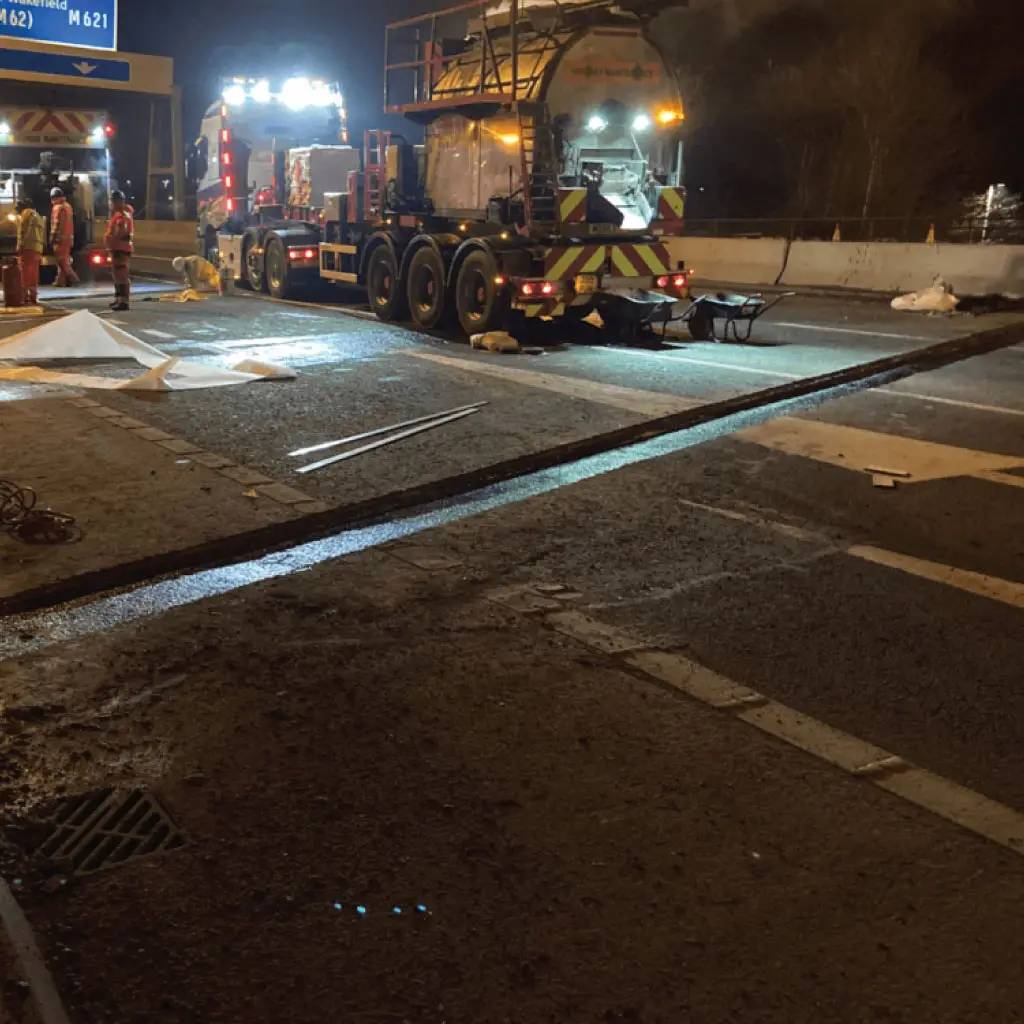

Used for repairing and replacing damaged bridge joints on highway structures.

Description

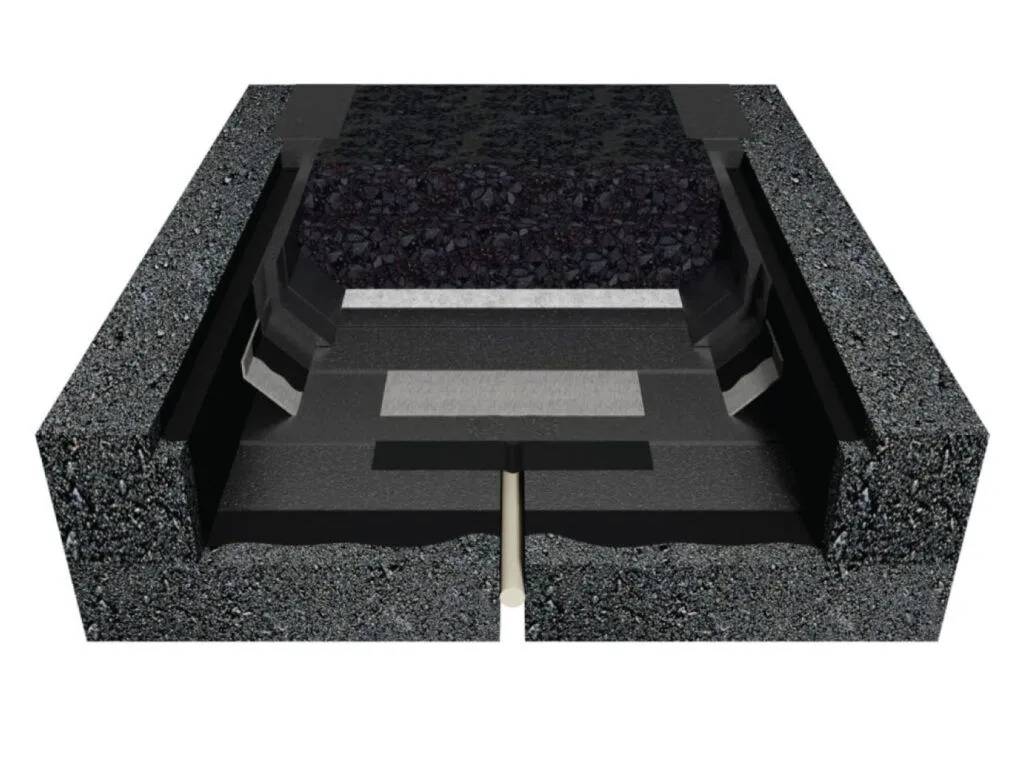

The IKO Permatrack H bridge expansion joint is a heavy duty, highly flexible movement joint system for repairing and replacing damaged bridge joints on highway structures.

Features and benefits:

Complies with DMRB document CD 357 ‘Bridge expansion joints’ as a flexible plug joint.
National Highways certified registration No. 028 in accordance with DMRB CD 357 ‘Bridge expansion joints’.
Suitable for any depth exceeding seventy millimetres and any width.
Flexible plug joint with longitudinal movement range plus or minus twenty millimetres, forty millimetres overall.

Components:

IKO Permatrack H.
IKO Permatrack HS Heat Sink Blocks.
IKO Permatrack PSB and IKO Quick Dry Primer.

General information

Color	Black
Material	Bitumen Aggregate Rubber
Shape	Formless
Warranty description	Five year Guidance for specification option: All of IKO’s road repair and maintenance products come with a five-year materials guarantee when installed in accordance with IKO specifications.

Uniclass	Pr_35_31_05_50 Mastic asphalt (MA) surface coursesPrimary

Specification data - Mastic asphalt (MA) surface courses

Classification data
Standard	To BS EN 13108-6.
Constituents	-
Aggregate size (maximum)	6 mm.
Binder designation	SBS-modified.
Colour	Black.
Aggregate properties	-
Resistance to polishing – polished stone value (minimum)	PSV of 65.
Resistance to surface abrasion – AAV (maximum)	AAV of 10.
Tensile Modulus	>2400 MPa. Manufacturer guidance Indirect tensile stiffness modulus.
Density	2400 kg/m³.
Primer	IKO Quick Dry Primer.
Waterproofing layer	IKO Permatrack PSB.
Integral accessories	IKO Permatrack HS Heat Sink Blocks. Guidance for specification option: Permatrack Heat Sink Blocks are designed to aid cooling of deep joints >225 mm.
Surface finish	6 mm bitumen coated chippings. Guidance for specification option: At a spread rate of 6.0–7.5 kg/m². 14 mm bitumen coated chippings. Guidance for specification option: At a spread rate of 7.5–10 kg/m². 20 mm bitumen coated chippings. Guidance for specification option: At a spread rate of 10–13.0 kg/m². Manufacturer guidance The Permatrack H on its own does not provide a surface macrotexture but requires bitumen coated chippings to be embedded into the surface.
