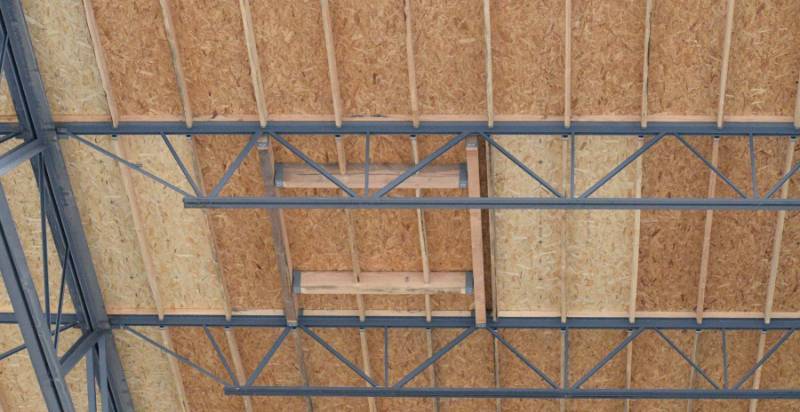

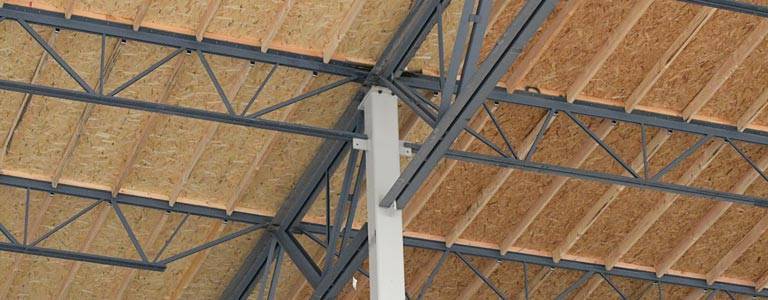

WN-Series® Wood Nailer Joists

Used in commercial and industrial roof construction where wood decking must be installed over steel joists, combining structural steel performance with a continuous wood nailing surface.

WN-Series® Wood Nailer Joists are hybrid steel-and-wood structural members designed for roof systems that require wood decking over steel framing. These open web steel joists incorporate continuous wood nailers along the top chord, joined with glued finger joint splices to maintain structural continuity along the full joist length. Available in multiple profiles and end configurations, the system supports a wide range of spans, depths, and roof slopes. This design approach provides an integrated solution that combines the structural efficiency of steel joists with the installation practicality of wood nailer surfaces.

Features and benefits:

• Hybrid steel and wood joist system for roof construction.
• Continuous 2½-inch (or 2-inch) thick wood nailers integrated along the top chord.
• Wood nailers use glued finger joint splices for full-length structural continuity.
• Open web steel joist design supports efficient structural performance.
• Available in parallel chord and single-pitched top chord profiles.
• Offered with underslung or square ends and roof pitches up to 2 inches per foot.
• Overall depths available from 26.5 inches to 50.5 inches.
• Span capabilities range from 24 feet to 70 feet.
• Enhances top chord lateral stiffness for safer handling and erection.
• Minimizes nailer widths for more consistent sub-purlin cut lengths.
• Reduces joist marks through increased concentrated load flexibility.
• Utilizes tension-controlled design for improved load sharing under extreme gravity overload conditions.
