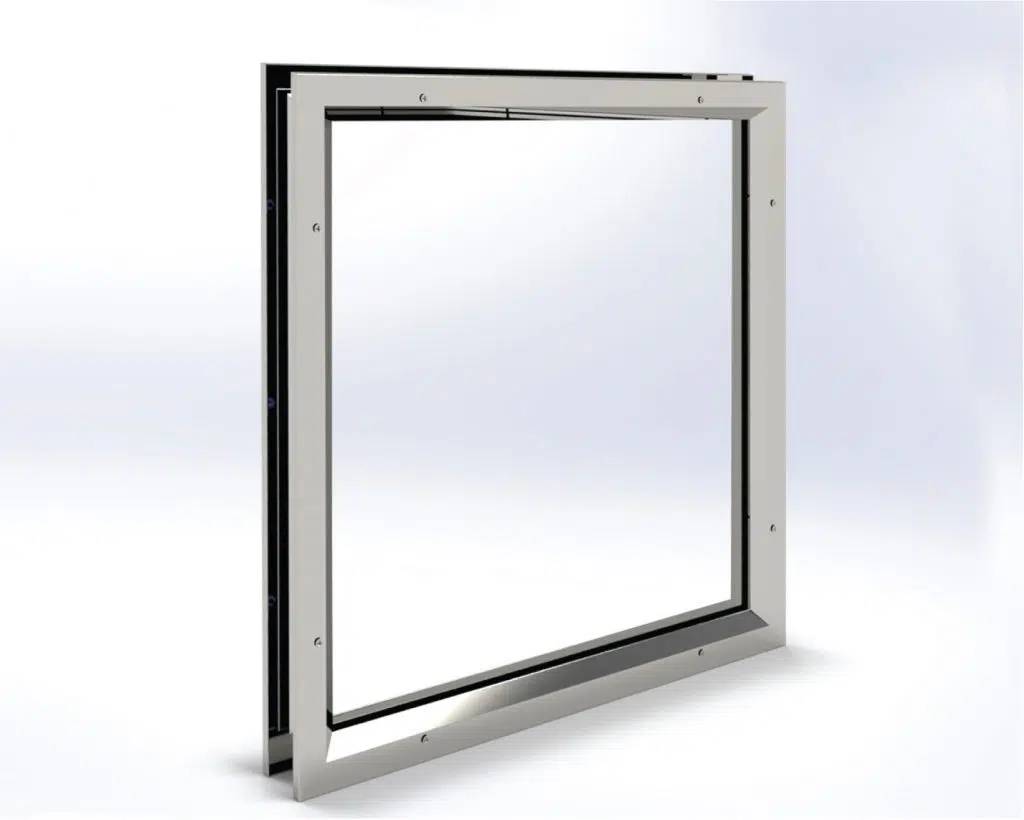

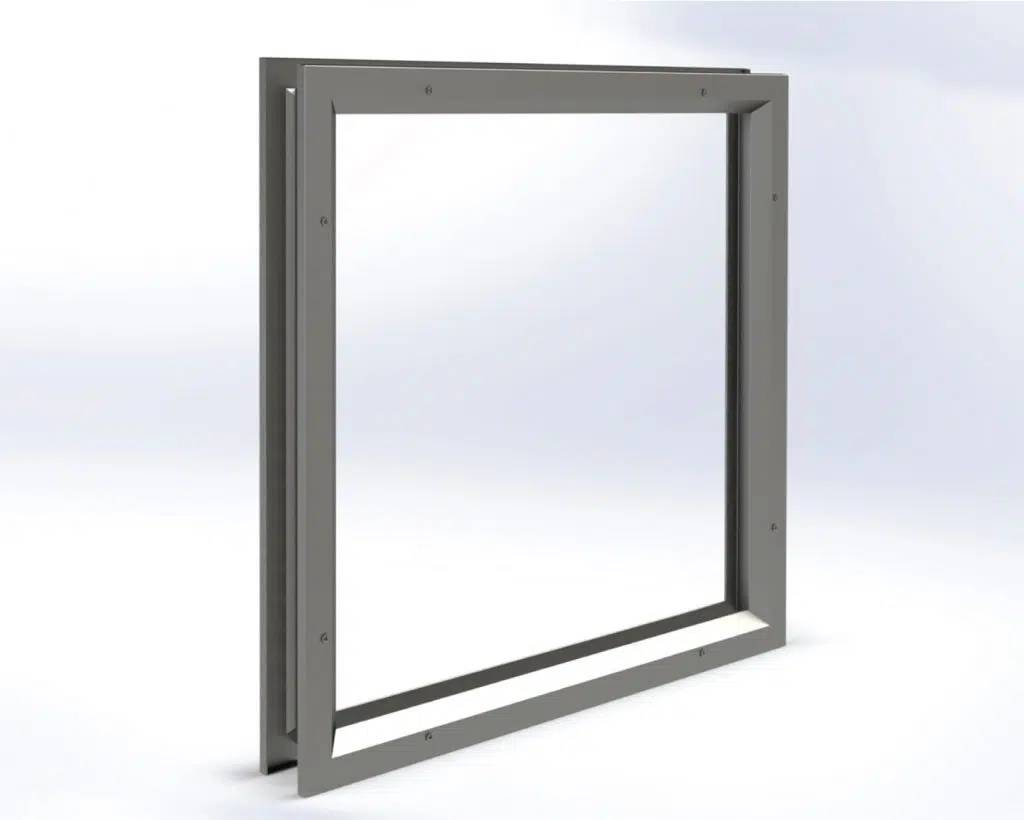

Titan Vision Kits

Titan Vision Kits are fire-rated vision lite framing systems designed for installation in fire-rated doors to provide visibility while maintaining required fire protection performance. These vision kits support clear view glazing areas up to 3,288 square inches and are compatible with various fire-rated glazing options. Designed to fit multiple door constructions, including hollow metal, wood, and composite doors, Titan Vision Kits are manufactured in the USA and engineered to meet multiple safety and fire protection standards.

Features and benefits:

• Fire-Rated Performance - Listed for fire ratings from 20 to 90 minutes, including temperature rise and non-temperature rise applications.
• Wide Door Compatibility - Can be installed in doors with thicknesses ranging from 1-3/4 inches to 3 inches.
• Large Clear Vision Area - Supports vision lite sizes up to 3,288 square inches for improved visibility and safety.
• Multiple Glazing Compatibility - Works with various fire-rated glazing products including SuperLite® I, SuperClear® 45-HS-LI, SuperLite® X-45/60/90, and SuperLite® II-XL by SAFTI FIRST®.
• Flexible Glass Thickness Support - Can accommodate glass thicknesses up to 3 inches.
• Durable Construction - Built using 20-gauge steel with corner keyed or welded assembly for strength and durability.
• Installation Ready Design - Includes gasketing and countersunk mounting holes on the interior side for easier installation.
• Certified Safety Compliance - Meets NFPA 80, NFPA 252, UL 10C, CAN/ULC-S106, CPSC 16 CFR 1201, and ANSI Z97.1 standards.
• Reliable Manufacturing - Manufactured in the USA with fast lead times and supported by a 5-year manufacturer warranty.
