The GOAT – Liquid-Applied Reactive -Waterproof roofing membrane - Liquid Applied Waterproof Coating

Verified by manufacturer 27 days ago

Intelligent Membranes US

The Goat is a liquid-applied waterproof and airtight sealant for timber, masonry, metal, and roofs, sealing gaps and junctions to prevent air leakage and water ingress in new build or retrofit project

Jump to:
01223208174 Website

Application

Product Application – The Goat® Flexible Waterproof Coating

General

Apply in accordance with manufacturer’s written instructions to form a continuous, seamless and flexible waterproof membrane.

The coating becomes waterproof within approximately 60 seconds of application, providing immediate resistance to water exposure during installation.

Substrate Preparation

Substrates shall be:

  • Structurally sound and stable
  • Clean and free from dust, grease, laitance or loose material
  • Free from standing water

Although the product may be applied to damp substrates, surfaces must not have active flowing water at the time of installation.

Defects, cracks or loose areas shall be repaired prior to application.

Application method:

  • Ready to use – do not dilute
  • Stir thoroughly prior to application
  • Apply by roller or paint brush
  • Work evenly to achieve full, uniform coverage
  • Ensure complete encapsulation at junctions, penetrations and upstands

Apply sufficient material to form a continuous, pinhole-free membrane.

Detailing

Particular care shall be taken at:

  • Internal and external corners.
  • Roof upstands and parapets.
  • Drain outlets.
  • Service penetrations.
  • Construction joints.

All detailing areas must be fully coated to maintain waterproof continuity.

Curing and performance

The membrane provides:

  • Rapid waterproof protection (within 60 seconds).
  • Seamless waterproofing.
  • Crack-bridging flexibility.
  • UV resistance.
  • Resistance to positive and negative water pressure.

Allow full cure before subjecting to heavy traffic or overlay finishes where specified.

Description

The GOAT is a rapid-cure, solvent-free reactive polymer waterproof membrane engineered for roofing, flat roofs, gutters, planters, balconies, and complex building junctions that need fast, reliable waterproofing.

Apply by brush or roller directly onto timber, masonry, concrete, metal, and bitumen surfaces. The GOAT cures through a reactive process — not air-drying — to form a tough, seamless, fully bonded waterproof layer that bridges cracks and remains flexible through temperature cycling. Coverage: approx. 1 gallon per 40–80 sq ft depending on substrate and number of coats.

Suitable for new construction and repair work. No primer required on most substrates. Resistant to ponding water, UV, and root penetration on inverted roof assemblies.

Pairs with Intelligent Membranes airtight and vapor control products for complete building envelope sealing from roof to floor slab.

Product page: https://www.intelligentmembranes.com/products/the-goat-flexible-waterproof-coating-paint-18kg-black-roller

Waterproofing solutions: https://www.intelligentmembranes.com/pages/waterproofing

Coverage rates: https://www.intelligentmembranes.com/pages/intelligent-membranes-application-coverage-rates

Watch it applied: https://www.youtube.com/channel/UCRU48mtdL587TE668StHIeg

General information

Color

Gray

Black

Green

Finish

Other

Material

Polymer

Shape

Formless

Length

Bespoke

Width

Bespoke

Uniclass

Pr_35_31_68_96 Water-dispersible polymer waterproof coatingsPrimary

USMS

07 14 16 Cold fluid-applied waterproofing

07 14 00 Fluid-applied waterproofing

Specification data - Water-dispersible polymer waterproof coatings

Classification data

Standard

To EN 1504-2.

Finish color

Gray.
Black.
Green.
White.

Form

Liquid.

Setting time

To EN 1504-2, 30–60 minutes (initial setting); 24 hours (final setting).

Adhesion

To EN 1504-2, >1 N/mm².

Guidance for specification option:

On concrete.

Manufacturer guidance

Consult manufacturer's literature for more details on adhesion to other substrates.

Density

To EN 1504-2, 1.35–1.4 kg/L.

Solids

To EN 1504-2, 100%.

Fire resistance

To EN 13501-5, Pass; BROOF (t1).

Elongation

+/- 350%.

Vetolujuus

>0.7 N/mm².
Stress at break to NBN EN 527-3, 1.35 MPA.

Tensile Modulus

To NBN EN 12691, 0.45 MPa.

Hardness (shore A)

40–50.

Crack bridging

To TR009, Pass; >0.75 mm.

Manufacturer guidance

After 500 mm.

Residual indentation

Dynamic to NBN EN 12691, pass; 10 mm and to TR006, 14 XPS.
Static to TR007, 250 N (L4-P4).

Waterproofing

To EN 14891, Pass.
Positive and negative water pressure to EN 1504-2, >2.5 bar.

Service temperature range

To EN 1504-2, -30°C to +80°C.

Application temperature

To EN 1504-2, +5 to +40°C.

Consumption (per layer applied)

To EN 1504-2, 1.5 kg/m².

Manufacturer guidance

Minimal consumption.

Technical characteristics, other

Resistance to sliding to TR009, Pass; <0.1 mm.

Sustainability data

Country of material origin

Europe

Country of product manufacture

Europe

Material

Polymer

Recycled content

As defined in clause 7.8 of ISO 14021

0 %

Literature

The GOAT 18kg - Install Guide

The GOAT 18kg - Install Guide

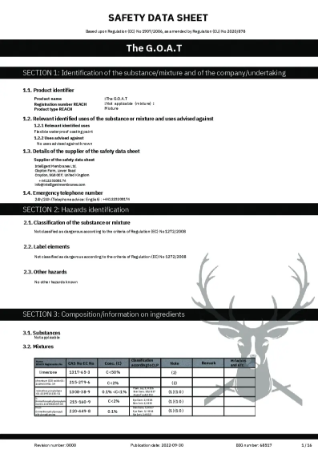

The Goat 18kg - Safety Data Sheet

The Goat 18kg - Safety Data Sheet

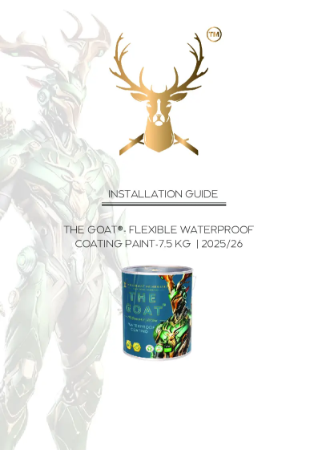

The GOAT 7.5kg - Install Guide

The GOAT 7.5kg - Install Guide

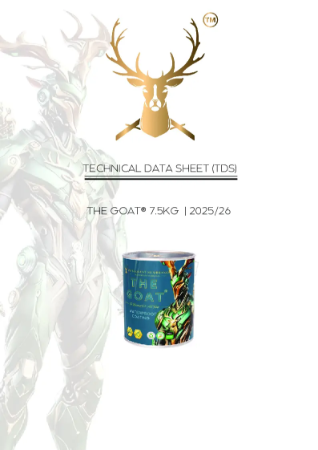

The GOAT 7.5kg - Product Sheet

The GOAT 7.5kg - Product Sheet

The GOAT 7.5kg - Safety Data Sheet

The GOAT 7.5kg - Safety Data Sheet
