Guidance for specification option:
Available in several visually appealing color options.
StylWall® II Flat Wall System
Verified by manufacturer 7 months ago
The StylWall® II Flat Wall System is an insulated steel wall solution that combines a smooth architectural finish with enhanced energy efficiency and efficient installation.
Application

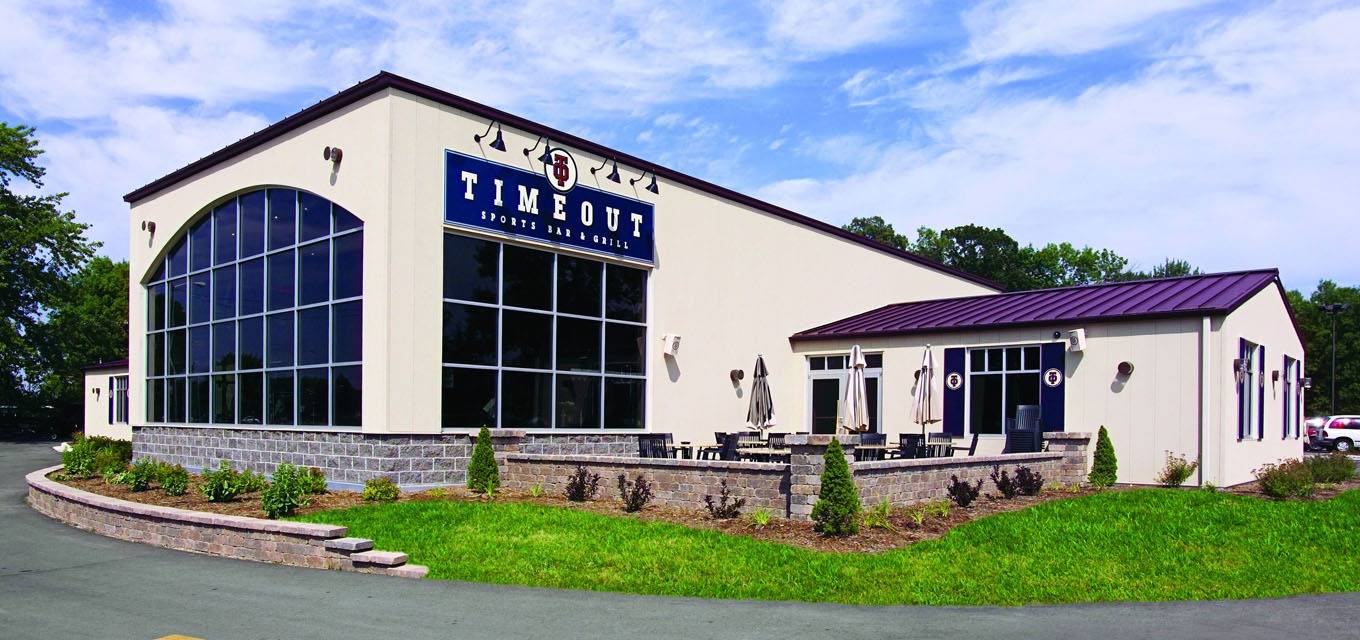

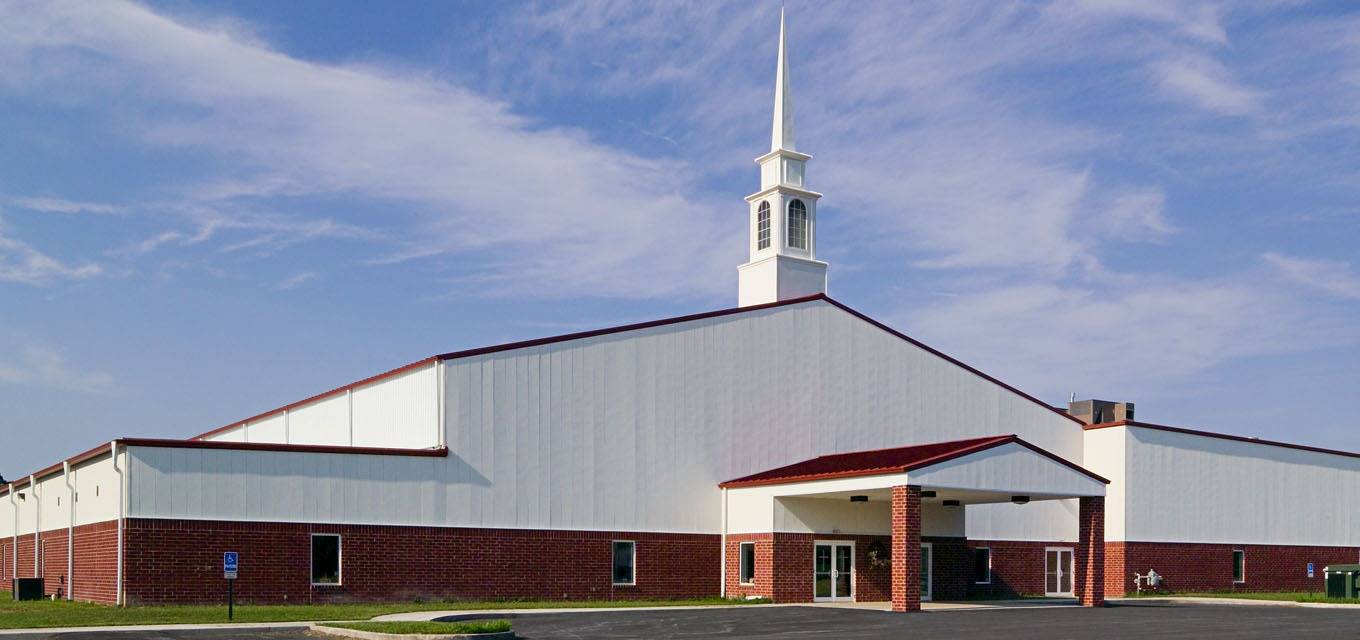

The StylWall® II Flat Wall System is commonly used as an exterior wall solution for manufacturing plants, office complexes, and community facilities where durability, energy efficiency, and a refined architectural appearance are required.
Description
The StylWall® II Flat Wall System is a factory-insulated exterior wall solution designed to deliver a smooth, clean architectural appearance while improving interior energy efficiency. Featuring a monolithic flat profile, the system integrates easily with other Butler wall systems as well as traditional materials such as brick, glass, and conventional wall assemblies. Its interlocking joint design allows panels to lock securely into place, supporting faster installation and compatibility with a wide range of interior finishes.
Features & Benefits:
- Smooth monolithic appearance with an embossed stucco pattern for consistent texture.
- Interlocking panel design enables efficient installation and secure panel alignment.
- Hidden fasteners provide a clean, uninterrupted exterior aesthetic.
- Factory-installed rigid insulation enhances thermal performance and energy efficiency.
- Durable Butler-Cote™ finish system offers long-term protection and color stability.
- Available in multiple colors to support architectural design flexibility
- 16-inch panel width supports uniform coverage and streamlined installation.
General information
Color | |
Finish | Coated Smooth |
Material | Steel Guidance for specification option: 26-gauge steel panels with a factory-installed rigid insulation board. |
Shape | Rectangle Guidance for specification option: Flat, smooth monolithic wall panel |
Length | Bespoke Guidance for specification option: Custom lengths available to suit project requirements. |
Width | 16 in |
Uniclass | |
USMS | 12 31 16 Manufactured metal sandwich panel casework |
Specification data - Carbon steel insulating sandwich panels
Classification data | |
Specification Data | Panel type: Embossed stucco pattern flat metal panel Panel fasteners: Concealed Panel width: 16 in Finish: Kynar 500®/ Hylar 5000® (Butler-Cote™ finish system) Color: Available in a range of colors (Consult manufacturer for details) |
Sustainability data
Material | Steel Guidance for specification option: 26-gauge steel panels with a factory-installed rigid insulation board. |
