Primer IM : Optimal Primer for Enhancing Adhesion on Porous Substrates - External Wall Primer

Verified by manufacturer 27 days ago

Intelligent Membranes US

Primer IM is a waterborne primer, applied on dense substrates prior to the application of waterborne dispersion coatings.

Jump to:
01223208174 Website

Application

Product Application – Primer IM

Substrate preparation:

  • Substrates must be structurally sound, clean, dry and free from dust, laitance, grease, oil, algae, loose particles or any contaminants that may impair adhesion.
  • Remove loose or friable material by brushing or suitable mechanical preparation.
  • Repair cracks or defects prior to application where required.
  • Ensure surfaces are dry and protected from rain or frost prior to application.

Application conditions:

  • Apply at substrate and ambient temperatures of +5°C and rising.
  • Do not apply during rainfall, fog, frost or where these conditions are expected before the product has dried.
  • Avoid application in direct intense sunlight or on overheated substrates.

Application method:

  • Stir thoroughly before use.
  • Apply by roller, brush or suitable low-pressure spray equipment.
  • Apply evenly to achieve full surface coverage without ponding.
  • Allow to penetrate into the substrate; do not allow excessive surface build-up.
  • One coat is normally sufficient; highly absorbent surfaces may require additional application.

Primer IM functions by deep penetration and consolidation of the mineral substrate, forming a stable and uniform base for subsequent waterborne dispersion coatings.

Drying and overcoating:

  • Allow to dry fully before application of subsequent coatings.
  • Drying time will vary depending on substrate type, temperature, humidity and ventilation.
  • Ensure the surface is visibly dry and consolidated before applying Passive Purple®, Airtight White® or Passive Purple® External.

Cleaning:

  • Clean tools and equipment immediately after use with clean water.
  • Remove cured material mechanically

Description

Primer IM is a waterborne micro-emulsion primer engineered for dense, low-absorption mineral substrates such as concrete, cast concrete, dense masonry, and similar surfaces where standard primers may not penetrate or key adequately.

Apply by brush or roller before any Intelligent Membranes waterborne dispersion coating. Primer IM consolidates the substrate surface, reduces porosity variation, and improves the adhesion of the overlying liquid membrane for a uniform, fully bonded finish.

Suitable for concrete floors and walls, precast panels, dense calcium silicate board, and similar materials. Coverage: approx. 1 gallon per 100-150 sq ft depending on substrate density. Allow to dry fully before applying topcoat.

Use as part of the Intelligent Membranes system specification on any project where the substrate is unusually dense or smooth-faced.

Pairs with: Passive Purple, Airtight White, Waterproof Blue, The GOAT.

Product page: https://www.intelligentmembranes.com/products/render-primer-im

Primer solutions: https://www.intelligentmembranes.com/pages/primers

Coverage rates: https://www.intelligentmembranes.com/pages/intelligent-membranes-application-coverage-rates

Watch it applied: https://www.youtube.com/channel/UCRU48mtdL587TE668StHIeg

General information

Color

White

Finish

Primed

Material

Liquid

Water-borne

Shape

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Uniclass

Pr_35_31_66_68 Primer-undercoatsPrimary
Pr_35_31_66_99 Waterborne undercoats

USMS

09 91 13 Exterior painting

09 91 23 Interior painting

SKU Code

IM/00EPR/10

Specification data - Primer-undercoats

Classification data

Composition

Waterborne.

Finish color

Milky white.

Drying time

Four hours.

Manufacturer guidance

The primers will take approximately four hours to dry. However, additional coats may be required depending upon the absorptivity of the substrate.

24 hours should be left between primer coats.

Allow to dry before application of waterborne dispersion coatings.

Density

1.0–1.1 kg/ L.

pH

9.0–10.0.

Solids content

>20%.

Application temperature

+5°C to +40°C.

Manufacturer guidance

For best performance.

Application method

Low pressure spray or roller.

Shelf life

24 month.

Manufacturer guidance

In un-opened packaging and if stored correctly. Protect against frost.

Capacity

5 L.

Coverage

100 g/m².

Manufacturer guidance

Approximate coverage for one layer.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Material

Liquid
Water-borne

Recyclability

Not recyclable due to its adhesion to other products

Recycled content

As defined in clause 7.8 of ISO 14021

0 %

Literature

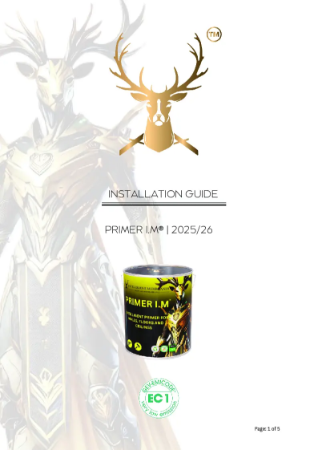

Primer IM - Install Guide

Primer IM - Install Guide

Primer IM - Safety Data Sheet

Primer IM - Safety Data Sheet
