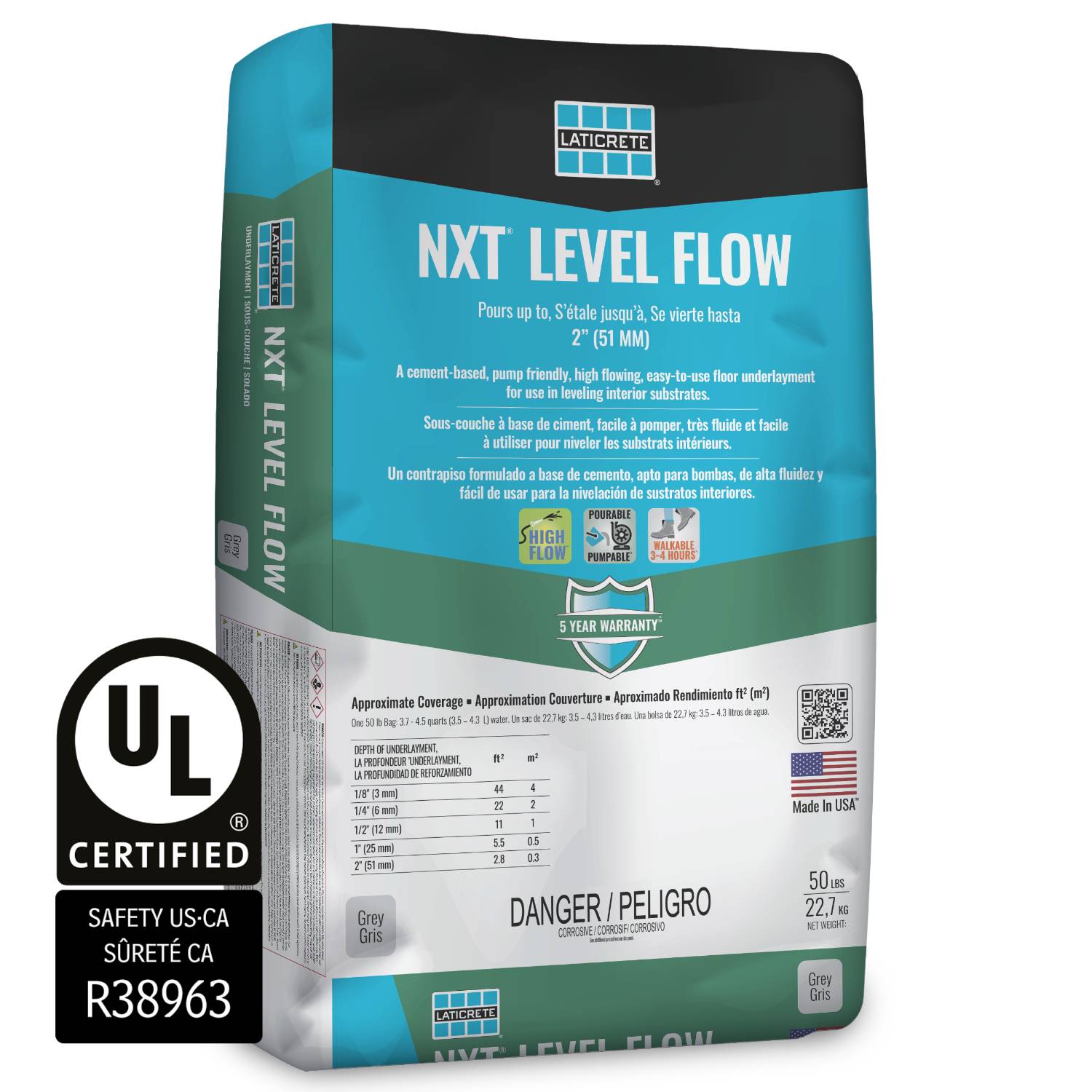

NXT® Level Flow

Verified by manufacturer 7 months ago

Laticrete Product certifications:
  • EPD

    EPD

    Certificate type

  • GreenGuard Gold

    GreenGuard Gold

    Certificate type

A UL-certified, fire-rated, high-flow cement-based self-leveling underlayment that delivers smooth surfaces, fast turnaround, and code-compliant performance.

Jump to:
+39 059 535540 Website

Application

NXT® Level Flow is used to level interior concrete, gypsum, and plywood substrates prior to installing hardwood, resilient, tile, stone, carpet, and other floor coverings in residential, commercial, and institutional buildings.

Description

NXT® Level Flow is a fire-rated, high-flow cement-based self-leveling underlayment developed for interior floor leveling applications where smoothness, efficiency, and code compliance are required. Its low-viscosity formulation allows for easy placement and excellent coverage while producing a flat, durable surface ready for floor coverings in as little as 24 hours. Designed to meet fire-rated building standards, it offers a reliable alternative to gypsum-based underlayments while supporting faster project timelines.

Features and benefits:

  • UL-certified for fire resistance, providing up to 2-hour fire ratings in floor-to-ceiling assemblies.
  • Value-engineered formulation designed to meet budget-conscious project requirements.
  • High-flowing, low-viscosity consistency that allows for easy placement and excellent coverage.
  • Pourable and pumpable application suitable for both small- and large-scale installations.
  • Self-leveling properties that smooth rough concrete and create a flat, even floor surface.
  • Application thickness from 1/8" to 2" in a single lift, with the ability to taper to zero at edges.
  • Walkable in 3 to 4 hours, reducing downtime during installation.
  • Suitable for placement over concrete with relative humidity up to 100% per ASTM F2170.
  • Type “LAT” tested in accordance with ANSI/UL 263 (ASTM E119) and ASTM E84 standards.
  • Inorganic composition that will not contribute to mold or mildew growth.
  • Suitable surface for most finished floor goods after 24 hours.

General information

Color

Gray

Finish

Other

Material

Cement

Shape

Other

Warranty description

One year

Five year

Uniclass

Pr_35_31_06_12 Cementitious levelling screed mixesPrimary

USMS

03 54 16 Hydraulic cement underlayment

Specification data - Cementitious levelling screed mixes

Classification data

Specification Data

Cement: Portland

Admixture: Not permitted

Pour Depth: 1/8 to 2 in (3 mm to 51 mm)

Tensile Bond Strength: ASTM C1583 • 200–275 psi (1.9–2.1 MPa)

Flexural Strength: ASTM C1708 • 700–900 psi (5.2–6.9 MPa)

Compressive Strength: ASTM C1708; ASTM C109, 1 day: 2100 psi (14.7 MPa), 7 day: 3000 psi (24.1 MPa), 28 day: 4200 psi (28.9 MPa)

Installed Dry Weight (per square foot @ ¼" / 6 mm): 2.5 lbs/ft²

Flammability: ASTM E84-14 • Flame Spread Index: 0; Smoke Developed Index: 0

Sustainability data

Material

Cement

Product certifications

Product certifications

EPD

EPD

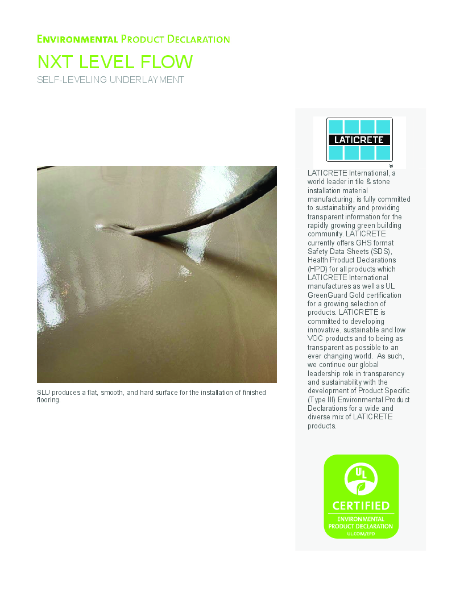

Product Specific (Type III) EPD - NXT® Level Flow

GreenGuard Gold

GreenGuard Gold

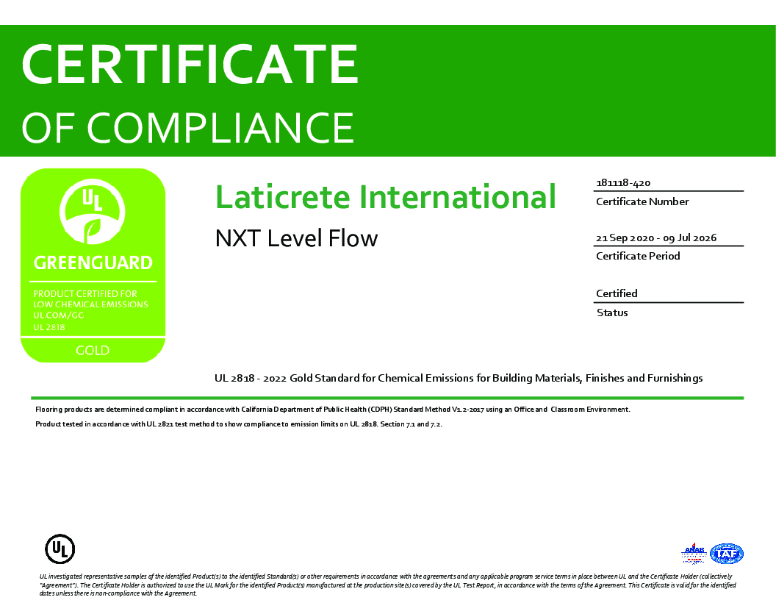

GREENGUARD Certification - NXT® Level Flow

Literature

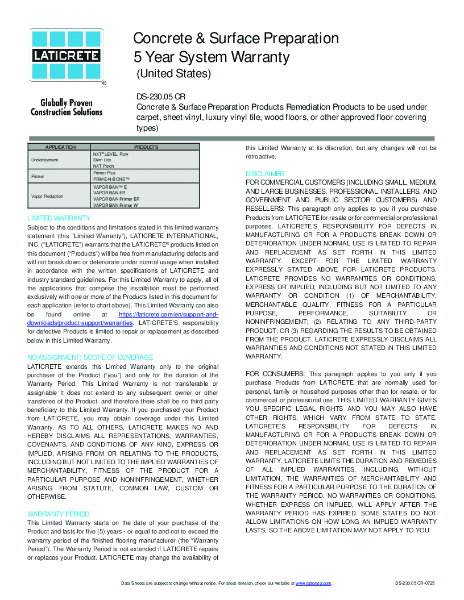

5 Year Concrete & Surface Preparation System Warranty

5 Year Concrete & Surface Preparation System Warranty

NXT® Level Flow - HPD

NXT® Level Flow - HPD

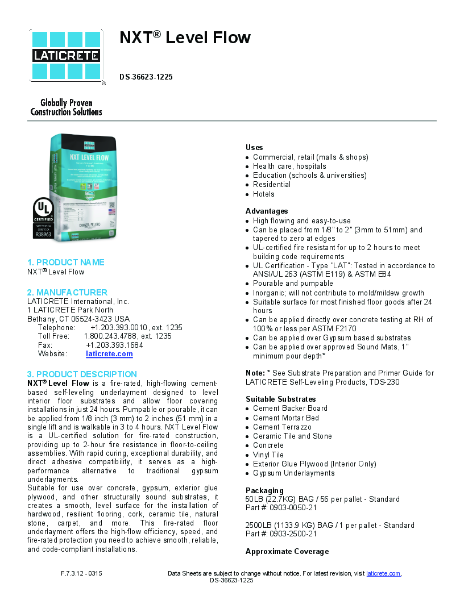

NXT® Level Flow Product Datasheet

NXT® Level Flow Product Datasheet

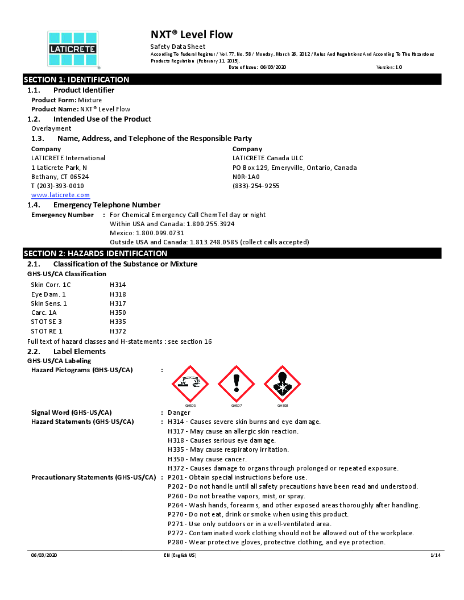

NXT® Level Flow - SDS

NXT® Level Flow - SDS

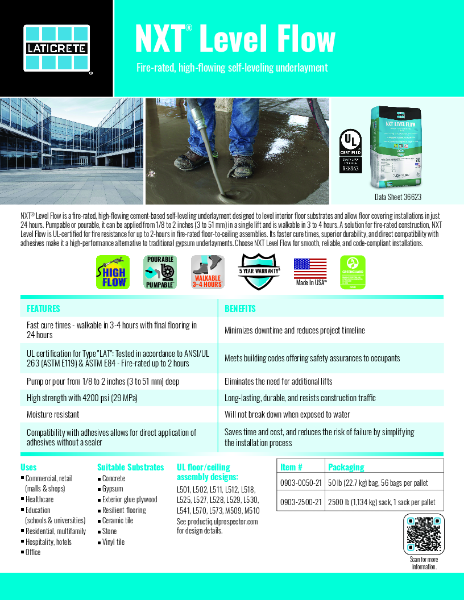

NXT® Level Flow - Sell Sheet

NXT® Level Flow - Sell Sheet

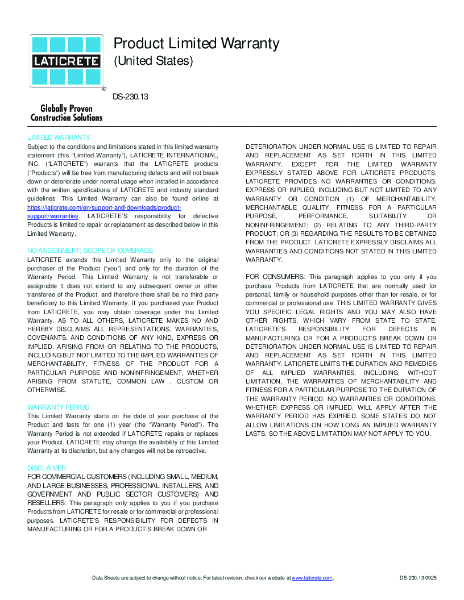

1 Year Product Warranty

1 Year Product Warranty

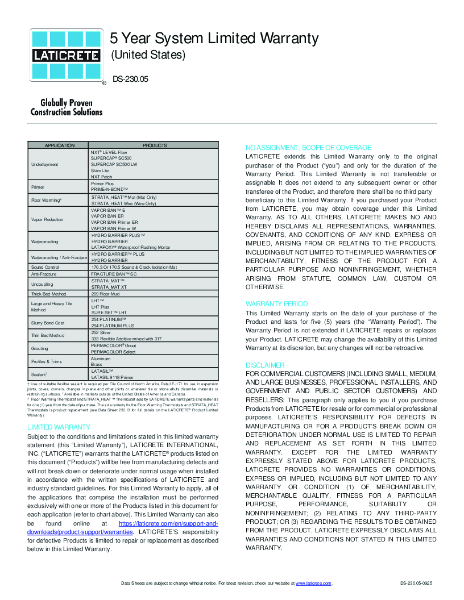

5 Year System Limited Warranty

5 Year System Limited Warranty

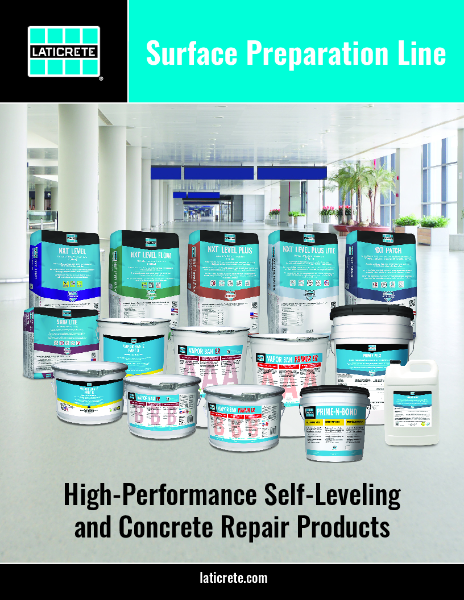

Surface Preparation Products Brochure

Surface Preparation Products Brochure

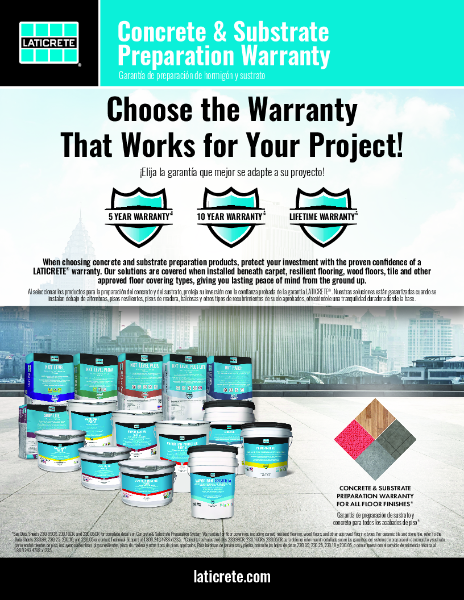

Concrete Remediation Warranty Flyer

Concrete Remediation Warranty Flyer

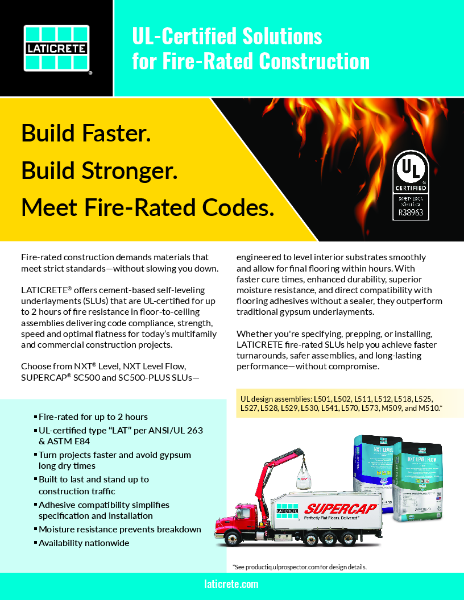

UL Certified Solutions for Fire-Rated Construction Flyer

UL Certified Solutions for Fire-Rated Construction Flyer

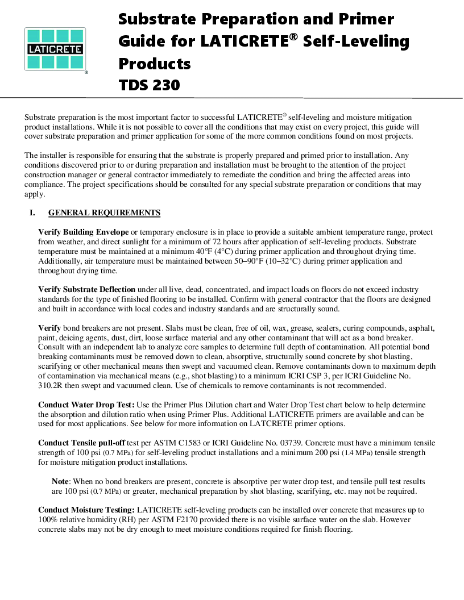

Substrate Preparation and Primer Guide for LATICRETE Self-Leveling Products
