Gusset Plates (G-Series & GP-Series)

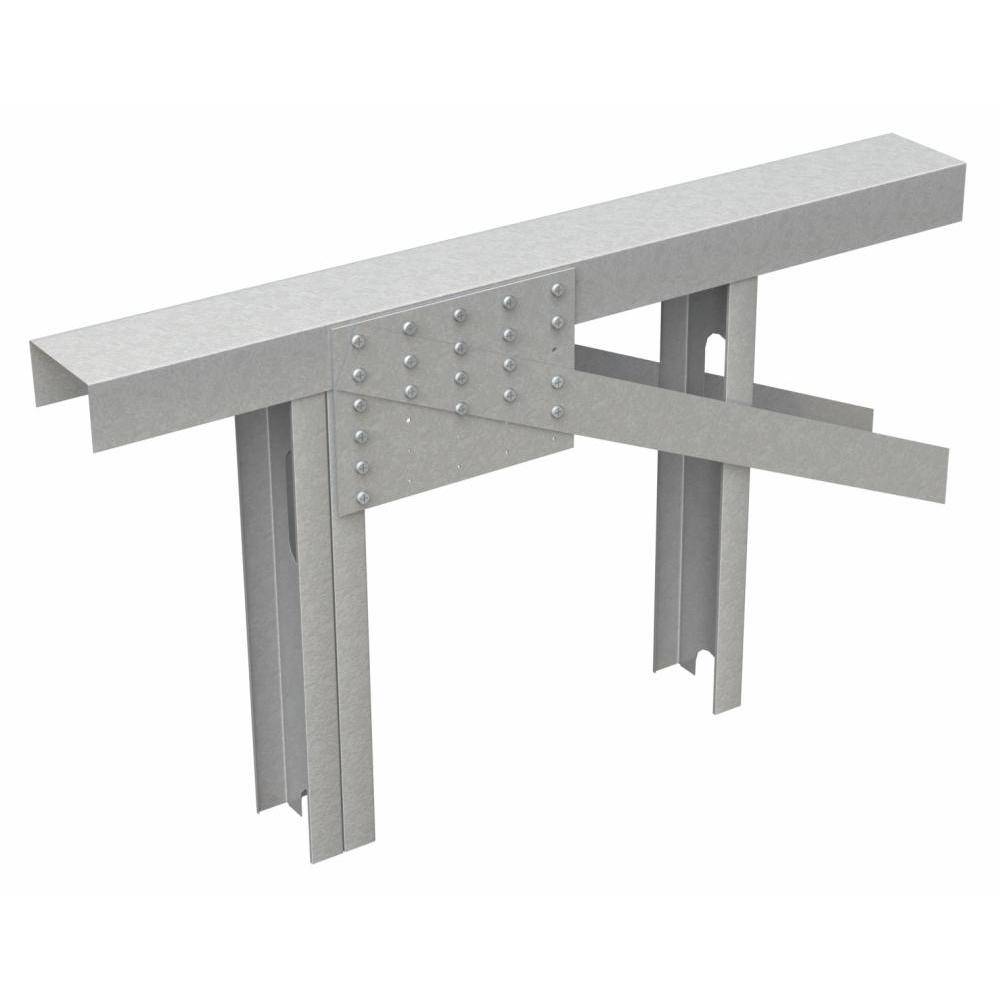

Gusset Plates are used in conjunction with X-bracing or diagonal tension strapping in load-bearing shear wall systems, roof framing, header framing, and in-plane framing connections to resist racking, uplift, and shear forces caused by wind and seismic loads, and are typically installed on both sides of framing members and concealed with finish materials.

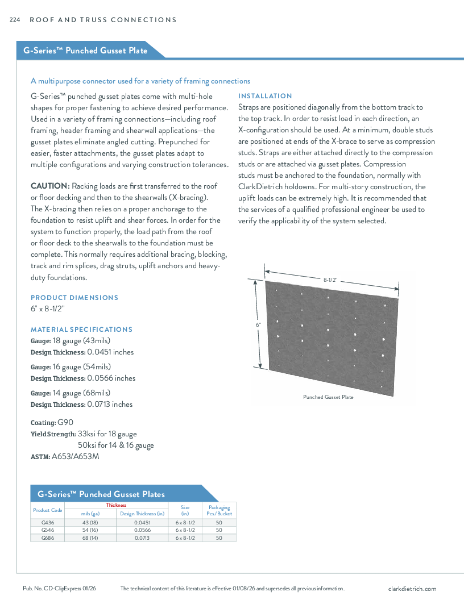

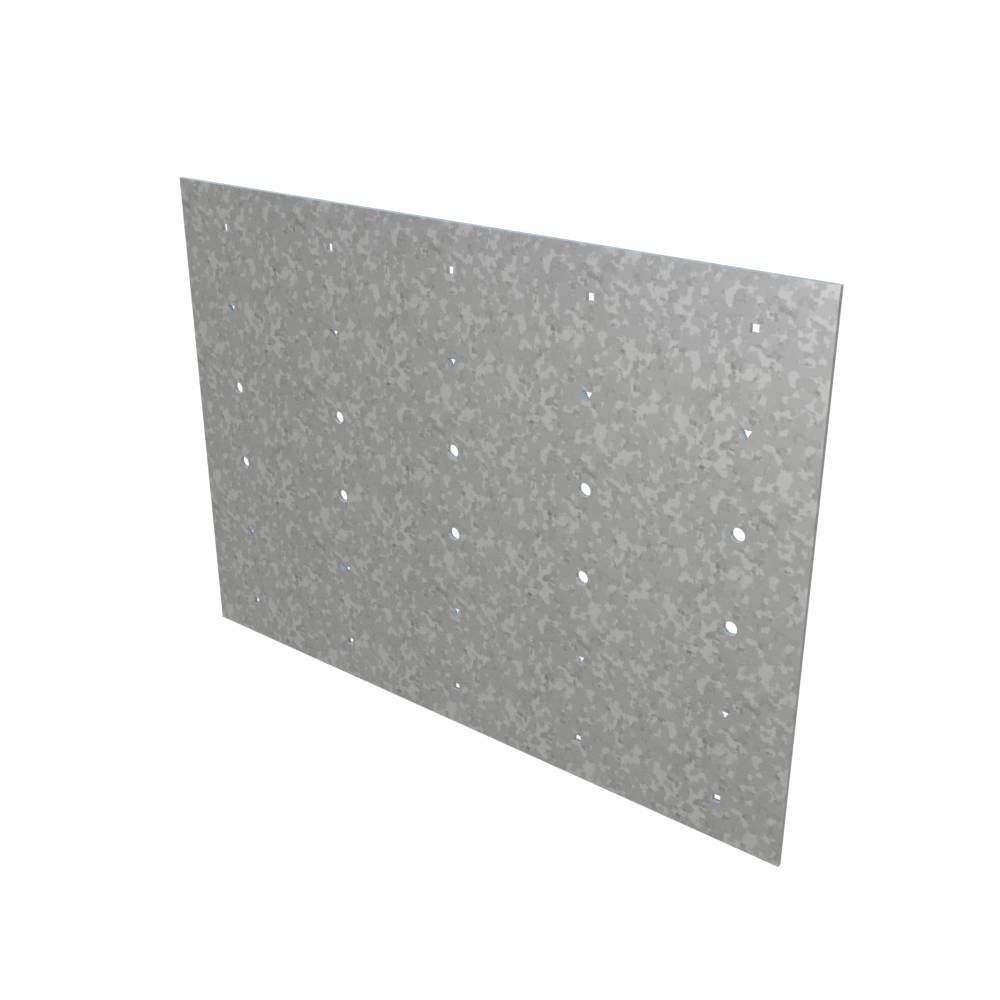

Gusset Plates (G-Series™ and GP-Series™) are steel connection components designed to provide efficient and reliable attachment for X-bracing, roof framing, and other structural framing applications. Available in both punched and unpunched configurations, these gusset plates support a wide range of construction requirements, from standard framing connections to custom shear wall assemblies. Manufactured from galvanized, mill-certified steel, they are engineered to accommodate construction tolerances while contributing to load transfer and structural stability in wind- and seismic-resistant framing systems.

Features and benefits:

• Punched and unpunched options – Supports standard and custom framing requirements
• High-strength steel construction – Mill-certified material provides predictable structural performance
• Galvanized coating – G90 hot-dipped finish enhances corrosion resistance
• Multi-hole punched designs (G-Series™) – Allows proper fastening patterns to achieve required performance criteria
• Installation efficiency – Eliminates angled cutting and adapts to varying construction tolerances

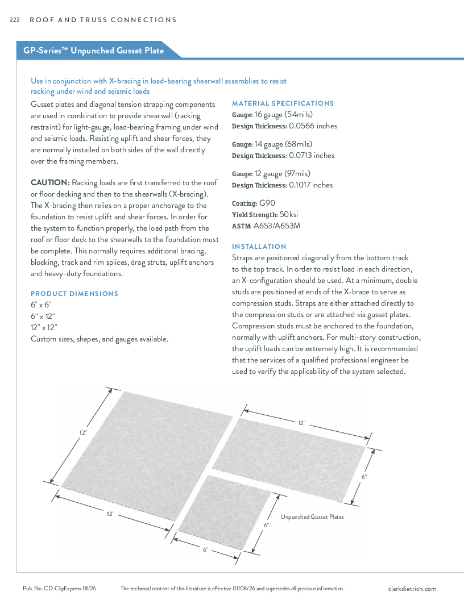

• Custom sizing available (GP-Series™) – Unpunched plates accommodate unique project conditions
• Structural load resistance – Helps resist racking, uplift, and shear forces in shear wall assemblies
• Versatile applications – Suitable for roof framing, header framing, shear walls, and in-plane framing connections
