Adjustable Joist Support
Verified by manufacturer 4 months ago
Joist Support with Rubber Pad
Joist Support with Rubber Pad
Adjustable support solution for minimal elevation heights in flooring and decking.
Application
Suitable for use on firm surfaces for joist laying.
Description
Adjustable Joist Support is an adjustable support system for flooring and decking, consisting of a threaded support with an adjustment ring and a clip‑in rubber base pad.
Features and benefits:
- Manufactured from polypropylene.
- Accepts joists up to a maximum width of 48 mm (2 in).
- Supports a maximum load of 365 lbf.
- Can be installed directly onto damp‑proof membranes.
- Minimum distribution of supports per square yard for joist spacing at 16‑inch centers, with supports spaced at 16–20 inches apart.
General information
Color | Black |
Material | Polypropylene |
Shape | Circle |
Width | 14 mm 50 mm |
Height | 20 mm |
Uniclass |
SKU Code | TER09-1164 |
Specification data - Decking and paving pedestals
Classification data | |
Specification Data | Pedestal type: Adjustable Material: Recycled polypropylene Adjustment: 14–50 mm (0.5–2 in) Accessories: Rubber pad |
Sustainability data
Country of product manufacture | Italy |
Material | Polypropylene |
Literature

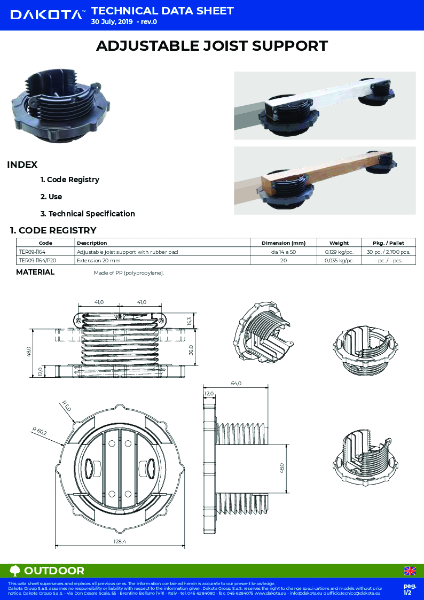

Adjustable Joist Support - TDS
