Action Zone One

The Action Zone One™ is a resilient wood athletic flooring system engineered to deliver consistent playability, vibration control, and athlete comfort through a factory-fabricated subfloor design.

Jump to:
+1 715-476-3512 Website

Application

This flooring system is used in indoor athletic facilities such as gyms, sports halls, and multi-purpose courts, where controlled deflection, ball response, and athlete safety are essential.

Description

The Action Zone One™ is a factory-fabricated wood athletic flooring system designed to deliver consistent performance, durability, and athlete comfort across a wide range of building types. The system integrates a precision-engineered subfloor with resilient materials that manage vibration, vertical deflection, and horizontal movement. Its layered construction promotes uniform airflow beneath the floor while supporting reliable ball rebound and stable play characteristics, making it suitable for multi-purpose athletic environments.

Features and Benefits:

  • Factory-fabricated subfloor system – Ensures structural strength, dimensional accuracy, and long-term stability.
  • Recycled polymer T-block anchor retainers – Control vibration and allow horizontal expansion while incorporating recycled content.
  • Continuous 5/8” strip foam layer – Supports uniform load distribution and consistent performance across the floor surface.
  • All-natural rubber pads (5/8” / 16 mm) – Enhance shock absorption, vibration dampening, and athlete comfort.
  • Vented rubber base (3” x 4”) – Promotes airflow beneath the floor to support system longevity and performance consistency.
  • Single layer of rated sheathing – Provides a stable and reliable base for the finished wood flooring.
  • Optimized athletic deflection – Designed to support safe movement, reduce impact stress, and improve overall playability.

General information

Color

Brown

Guidance for specification option:

Natural wood tone

Finish

Lacquered

Coated

Material

Polymer

Guidance for specification option:

Recycled polymer T-block anchor retainers

Birch plywood

Shape

Rectangle

Guidance for specification option:

Sheet / Panel

Uniclass

Ss_30_20_95_95 Wood floating floor systemsPrimary

USMS

09 64 66 Wood athletic flooring

09 65 66 Resilient athletic flooring

32 18 23 Athletic surfacing

Specification data - Wood floating floor systems

Classification data

Specification Data

System Performance: MFMA PUR/ EN 14904 Type 4 Certified/ DIN 18032-2 (2001) / ASTM F2772

Vapor Control Layer: 6-mil polyethylene

Subfloor Preparation Layer: one layer of 11/32 x 4 x 8 in exposure

1, rated sheathing

Fasteners: Flooring fasteners shall be 1-1/2 in cleats, or 15-gauge coated staples / Subfloor fasteners shall be ¾ in 15-gauge coated staples

Perimeter Flanking Seal: 3 x 4 in vented cove base with pre-molded corners

Sustainability data

Material

Polymer

Guidance for specification option:

Recycled polymer T-block anchor retainers

Birch plywood

Literature

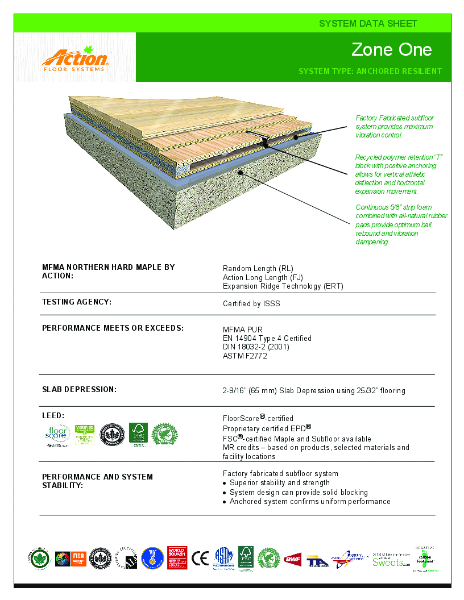

Action Zone One - System Data Sheet

Action Zone One - System Data Sheet
