Action Aero HL

Verified by manufacturer 4 months ago

Action Zone One

A high-load wood athletic flooring system designed to provide uniform resilience, controlled movement, and consistent shock absorption in demanding sports environments.

Jump to:
+1 715-476-3512 Website

Application

The Action Aero HL is used in indoor athletic facilities such as gymnasiums and multipurpose sports halls where higher structural loads, including taller bleachers, require a resilient and stable wood flooring system.

Description

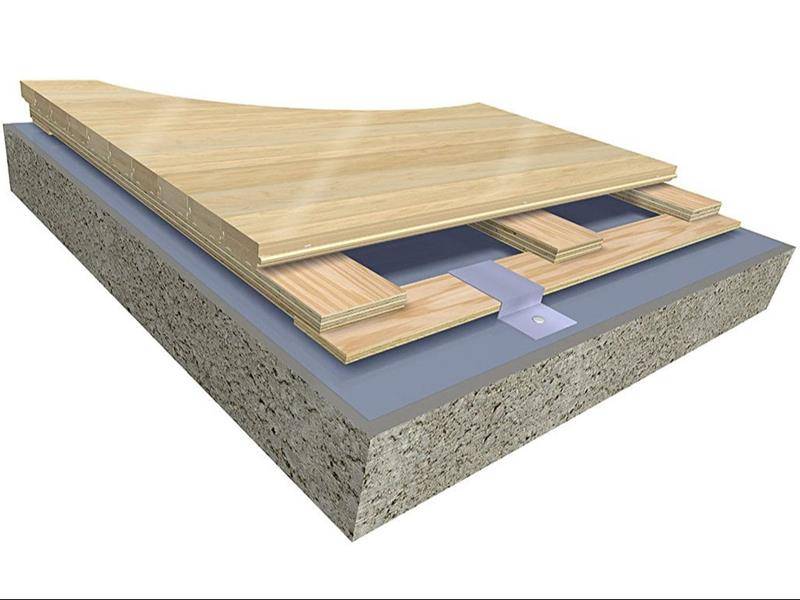

The Action Aero HL is a wood athletic flooring system engineered for facilities where higher load requirements, such as slightly taller bleacher systems, are present. Designed as a resilient flooring solution, it allows the entire system to move cohesively in response to natural expansion and contraction, helping maintain long-term performance. The system delivers consistent shock absorption and uniform playability across the surface, supporting athlete safety and reliable performance in a wide range of building types.

Features and Benefits:

  • High Load (HL) design supports applications with taller or heavier bleacher systems.
  • Floating resilient system allows full system movement to accommodate expansion and contraction.
  • Factory-fabricated panels ensure dimensional accuracy and consistent installation quality.
  • Dual-stage natural rubber pads provide uniform shock absorption and enhanced athlete comfort.
  • 7/8” thick sleeper construction contributes to system strength and load distribution.
  • Anchor clip system maintains system alignment while allowing controlled movement.
  • Consistent system height options accommodate varying project and design requirements.

General information

Color

Brown

Guidance for specification option:

Natural wood tone (as determined by selected wood athletic flooring surface)

Finish

Other

Material

Wood

Guidance for specification option:

  • Engineered wood athletic flooring panels
  • Wood sleepers (7/8” thick)

Rubber

Guidance for specification option:

Dual-stage natural rubber pads (5/8” / 16 mm)

Polymer

Guidance for specification option:

Polymer anchor clips

Shape

Rectangle

Guidance for specification option:

Rectangular modular floor panels

Height

50 mm

Guidance for specification option:

Overall system height

Uniclass

Ss_30_20_95_10 Battened wood floating floor systemsPrimary

USMS

09 64 66 Wood athletic flooring

09 65 66 Resilient athletic flooring

32 18 23 Athletic surfacing

Specification data - Battened wood floating floor systems

Classification data

Specification Data

System Performance: EN 14904 Type 4 / DIN 18032 Part 2 / ASTM F2772 / MFMA PUR / FIBA Level 1

Vapor Control Layer: 6-mil polyethylene

Subfloor Preparation Layer: Action Aero NR panels pre-assembled with 5/8 in ProAction pads, 3-7/8 in wide laminated nailers to be spaced 10 in o.c

Flooring: Northern Hard Maple standard strip flooring (25/32 in x 2-1/4 in or 1-1/2 in)

Fasteners: Flooring fasteners shall be 1-3/4 in cleats, or 15-gauge coated staples

Perimeter Flanking Seal: 3 x 4 in vented cove base with pre-molded corners

Sustainability data

Material

Wood

Guidance for specification option:

  • Engineered wood athletic flooring panels
  • Wood sleepers (7/8” thick)

Rubber

Guidance for specification option:

Dual-stage natural rubber pads (5/8” / 16 mm)

Polymer

Guidance for specification option:

Polymer anchor clips

Literature

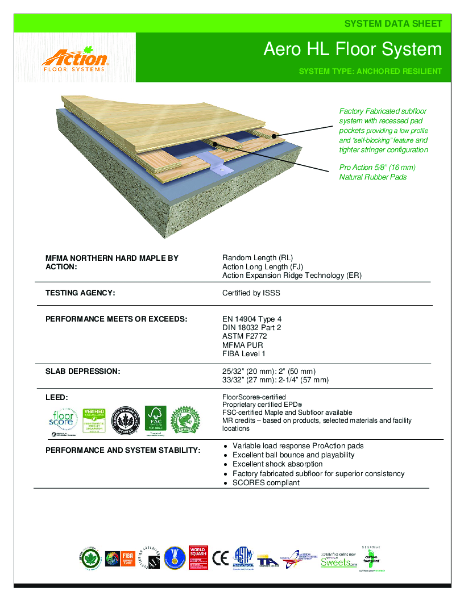

Action Aero HL - Safety Data Sheet

Action Aero HL - Safety Data Sheet

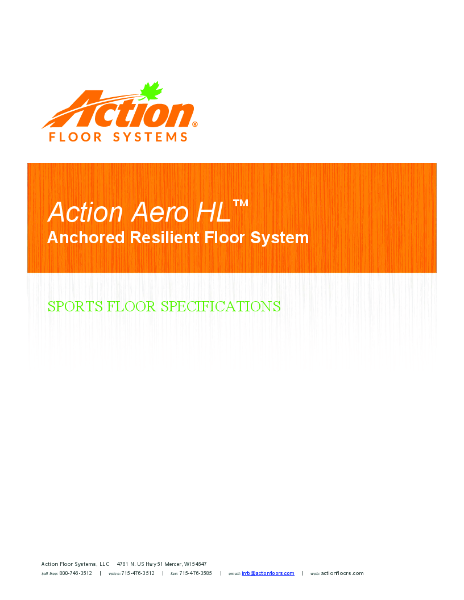

Action Aero HL - System Specification

Action Aero HL - System Specification
