700 Series Counter Shutter
Verified by manufacturer 6 months ago
Model 722 - Painted steel
Model 722 - Painted steel
This manually operated rolling door provides a practical balance of durability, security, and ease of operation for light-duty commercial openings.
Application
The product is commonly used in retail backrooms, service counters, storage areas, and light industrial spaces where controlled access and space-efficient door operation are required.
Description
This rolling door system is designed to provide dependable access control and everyday security for light commercial and service applications. Constructed with flat, high-profile slats and supported by durable locking and guide components, the door offers consistent operation in manual configurations. Its enclosed hood and integrated weather sealing help protect internal components while supporting long-term functionality in interior and exterior openings.
Features and benefits:
- Flat slats with a 1½ in high profile provide strength and uniform curtain appearance.
- Steel end-locks help maintain slat alignment and add stability during operation.
- Enclosed hood protects the barrel and curtain from dust, debris, and incidental contact.
- Slide bolt locks offer a simple and effective method of securing the door when closed.
- Aluminum angle bottom bar with weather seal helps reduce air and debris infiltration.
- Manual push-up operation is available for openings up to 10 ft-4 in wide for ease of use.
- Crank operation is provided for wider openings above 10 ft-4 in to ensure controlled lifting.
- Two-year limited warranty supports product reliability and workmanship assurance.
General information
Color | Brown Silver White Gray |
Finish | Powder-coated Anodized Stainless steel |
Material | Steel Aluminum Stainless steel |
Shape | Square Rectangle |
Width | Bespoke |
Height | Bespoke |
Warranty description | Two year 35 year Guidance for specification option: No-chalk/no-fade limited paint warranty 40 year Guidance for specification option: Film integrity warranty |
Uniclass | |
USMS | 10 71 13.23 Coiling exterior shutters |
Specification data - Roller shutters
Classification data | |
Specification Data | Opening sizes: (Consult manufacturer for options and insert requirements) Format: External / Internal Arrangement: Face of wall / Between jamb above lintel / Between jamb under lintel Shutter curtain - Lath material: 22-gauge, 1½ in galvanized steel Shutter curtain - Profile: Flat Shutter curtain - Finish and color: Galvanized / Painted, gray topcoat / Painted, tan topcoat / Painted, white topcoat / Powder-coated, gray topcoat / Powder-coated, tan topcoat / Powder-coated, white topcoat Frame and guides - Material: Aluminum Frame and guides - Finish: Manufacturer’s standard Frame and guides - Color: Natural Operation - Mode: Up to 10 ft 4 in wide: manual push up; crank operation for wider doors Hardware: (Specify mounting substrate) Drum assembly: Barrel fabricated from minimum 4½ in OD pipe, with 1 in tension and drive shaft and provided with threaded rings or lugs welded to barrel for curtain assembly Hood: 24 gauge steel Bottom bar: Extruded aluminum Locking: Dual slide bolt locks (Standard) / Cylinder locks |
Sustainability data
Material | Steel Aluminum Stainless steel |
Literature
Literature type

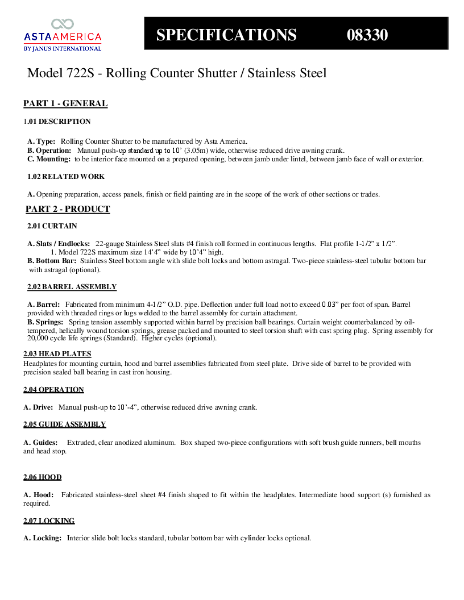

Model 722S Technical Specifications Stainless Steel

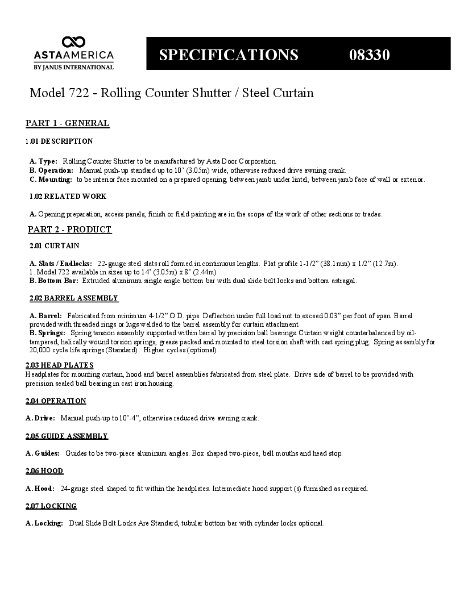

Model 722 Technical Specifications Steel

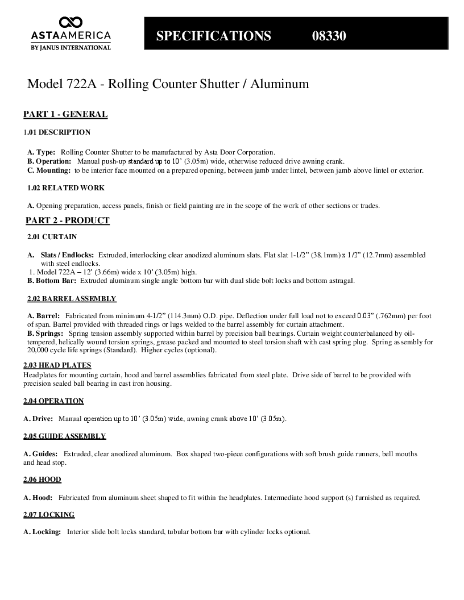

Model 722A Technical Specifications Aluminum

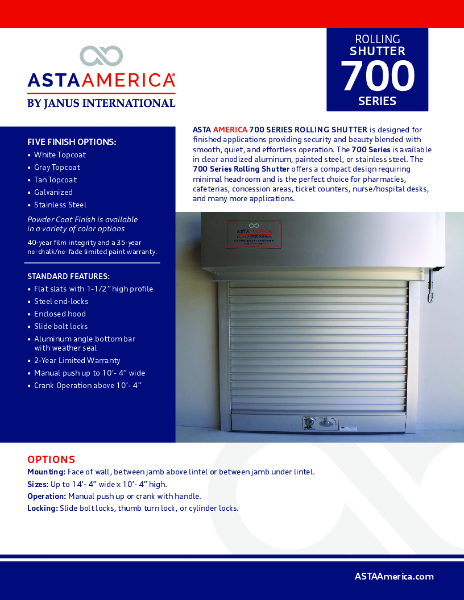

Series 700 Product Brochure

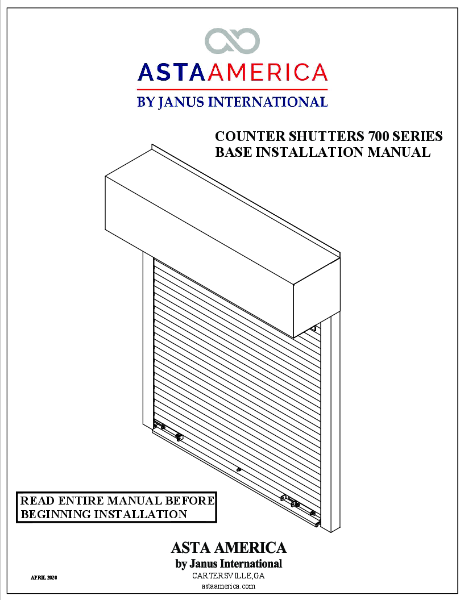

Series 700 Installation Instructions
Powder Coating RAL Color Chart
Rolling Steel Door Color Chart
