650 TRM Waterproofing Barrier - Termite Waterproofing Barrier

Verified by manufacturer 8 months ago

Polyguard Products

A peel and stick waterproofing and termite barrier membrane for concrete, plywood, and OSB foundations.

Jump to:
214-515-5000 Website

Application

Used as a waterproofing and termite exclusion barrier membrane on concrete foundations, plywood, and oriented strand board (OSB) in both commercial and residential construction.

Description

Since 2002, hundreds of foundations across the United States have been protected with 650 TRM to exclude both water and termites. 650 TRM is a “peel and stick” barrier membrane used on concrete, plywood & OSB. Polyguard waterproofing membranes have been used worldwide on both commercial and residential construction since 1970. Research and testing of termite and pest exclusion, in cooperation with scientists at Texas A&M’s Urban and Structural Entomology Laboratory, began in 1999.

Features and benefits:

  • The only physical termite barrier with over 2 decades of university backed testing.
  • Strong, pliable, self-adhesive sheet.
  • 4-mil high density polyethylene film bonded to 64 mils of barrier sealant = 68 mils thick.
  • Formulated for low temperature application down to 30°F (-1°C).
  • No waiting is required before backfilling.
  • 30-day UV exposure.

General information

Color

Red

White

Material

Polyethylene

Shape

Rectangle

Length

800 in

Width

36 in

Height

0.068 in

Uniclass

Pr_25_57_65_37 High-density polyethylene (PE-HD) sheetsPrimary

Specification data - High-density polyethylene (PE-HD) sheets

Classification data

Specification Data

Material: 650 TRM is a strong, pliable, self-adhesive sheet made of a 4-mil high-density polyethylene film bonded to 64 mils of barrier sealant

Purpose: Provides both waterproofing and termite protection for concrete and ICF foundations

Width: 36 in

Roll length: 66.7 ft

Sustainability data

Material

Polyethylene

Literature

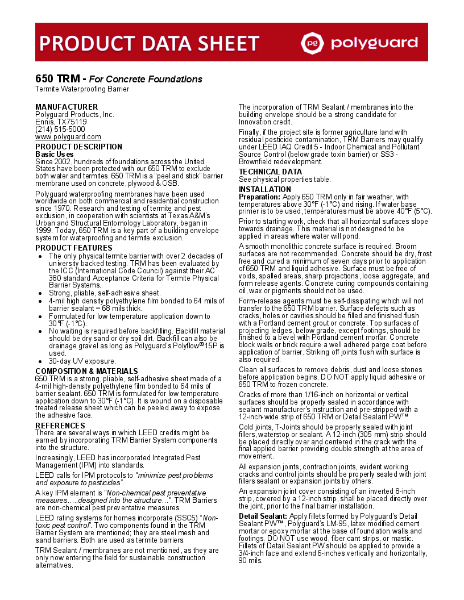

PGArch-PDS-650TRM-for-Concrete-Foundations-07012025

PGArch-PDS-650TRM-for-Concrete-Foundations-07012025
