190 Series Economy Commercial Sheet Door

Verified by manufacturer 6 months ago

ASTA America (Janus Intl)

The 190 Series Economy Commercial Sheet Door delivers a straightforward, easy-to-install steel door solution for commercial and self-storage applications.

Jump to:
770-974-2008 Website

Application

This product is commonly used in self-storage facilities, warehouses, service areas, and light commercial buildings where secure, economical, and space-efficient access is required.

Description

The 190 Series Economy Commercial Sheet Door is designed to provide a practical and cost-effective access solution for commercial and self-storage environments. Engineered with simplicity and functionality in mind, this door series supports a wide range of opening sizes and applications while maintaining consistent performance. Built for efficient installation, the system incorporates integrated tension and adjustment components that help streamline setup and ongoing operation, making it suitable for projects where reliability and ease of use are key considerations.

Features and benefits:

  • Economy commercial sheet door design offers a reliable solution for commercial and self-storage applications.
  • Spiral torque tubes support balanced door operation and smooth opening and closing.
  • Tension holding devices enhance operational stability and assist with long-term performance.
  • Adjustable bracket systems allow for easier installation and fine-tuning during setup.
  • Available in multiple models and sizes to accommodate a variety of opening requirements.
  • Paint color options provide flexibility for visual coordination with surrounding structures.
  • Lightweight construction helps reduce installation time and labor effort.
  • Designed for quick and straightforward installation compared to traditional sheet door systems.

General information

Color

Bronze

Red

Brown

Beige

White

Show more

Finish

Galvanized

Painted

Material

Steel

Shape

Square

Rectangle

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Guidance for specification option:

Film integrity warranty

Uniclass

Pr_30_59_84_73 Roller shuttersPrimary

USMS

10 71 13.23 Coiling exterior shutters

Specification data - Roller shutters

Classification data

Specification Data

Opening sizes: (Consult manufacturer for options and insert requirements)

Format: External

Arrangement: To be interior face mounted on a prepared opening

Shutter curtain - Lath material: 26-gauge grade 80 galvanized steel

Shutter curtain - Profile: Flat

Shutter curtain - Finish and color: Bronze (Standard) / Cedar Red (Standard) / Continental Brown (Standard) / Desert Sand (Standard) / Desert Tan (Standard) / High Gloss White (Standard) / LG Forest Green (Standard) / Light Stone (Standard) / Sandstone (Standard) / Satin White (Standard) / Silhouette Gray (Standard) / Specialty color (Four tiers available, consult manufacturer's literature and insert requirements)

Frame and guides - Material: 14-gauge steel channels, 2¼ in deep per side

Frame and guides - Finish: Galvanized

Frame and guides - Color: Natural

Operation - Mode: Rope pull up to 10 x 10 ft; otherwise reduction gear chain hoist as standard

Hardware: (Specify mounting substrate)

Drum assembly: 26-gauge, 9½ in diameter galvanized steel spiral torque tube attached to 20-gauge galvanized drums

Bottom bar: Continuous 2 x 1½ in 12-gauge galvanized steel angle fastened to aluminium retainer with PVC bulb astragal

Locking: Dual galvanized steel slide bolts (Attached to the bottom bar, suitable for padlocks)

Sustainability data

Material

Steel

Literature

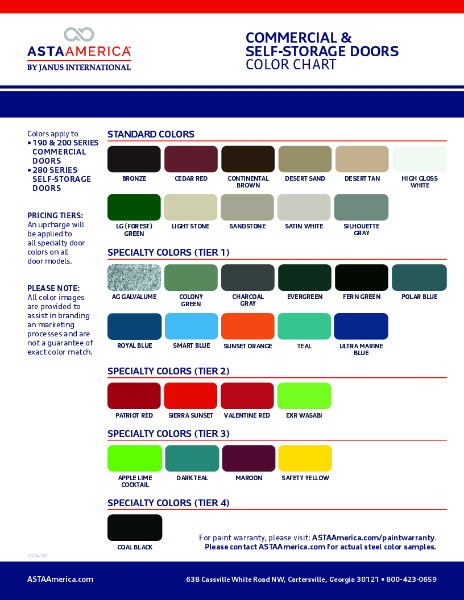

Commercial Sheet Door Color Chart

Commercial Sheet Door Color Chart

Series 190 Product Brochure

Series 190 Product Brochure

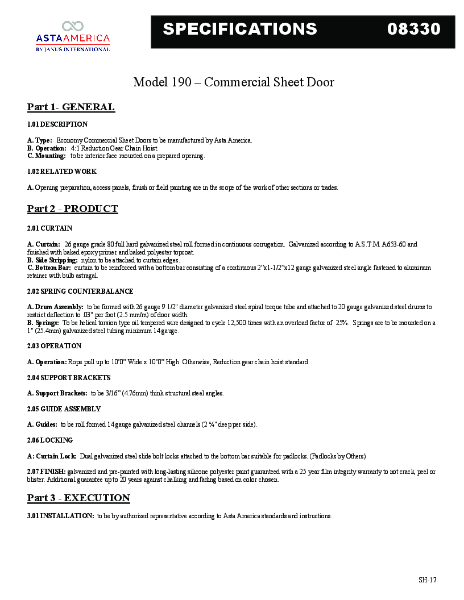

Series 190 Technical Specifications

Series 190 Technical Specifications

Series 190HD Technical Specifications

Series 190HD Technical Specifications

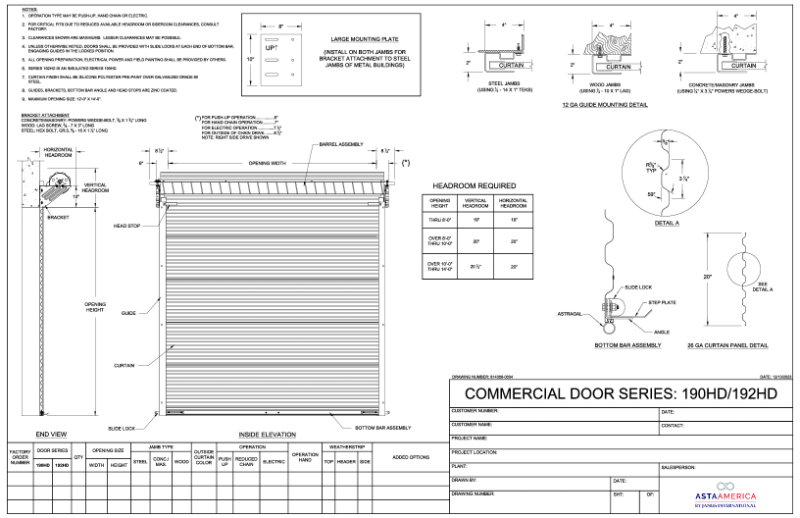

Series 190HD Shop Drawing

Series 190HD Shop Drawing

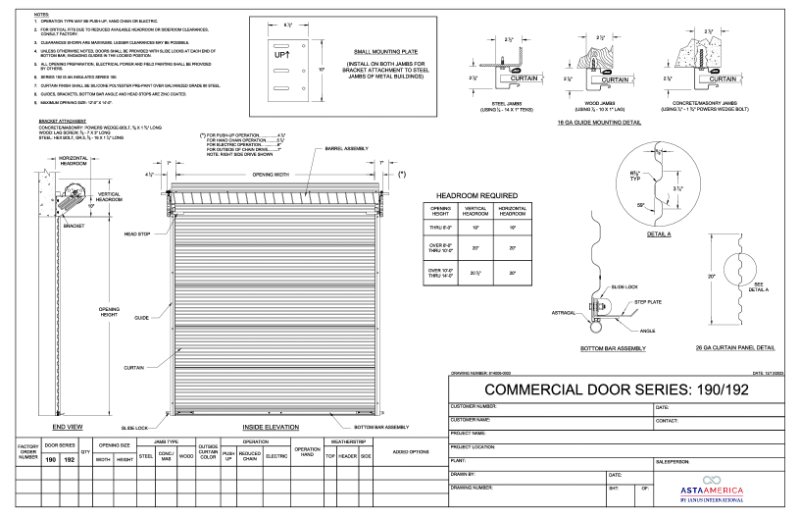

Series 190 Shop Drawing

Series 190 Shop Drawing

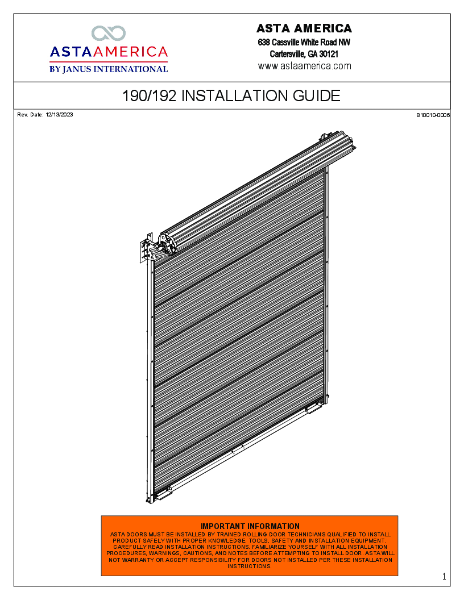

Series 190 Installation Instructions

Series 190 Installation Instructions

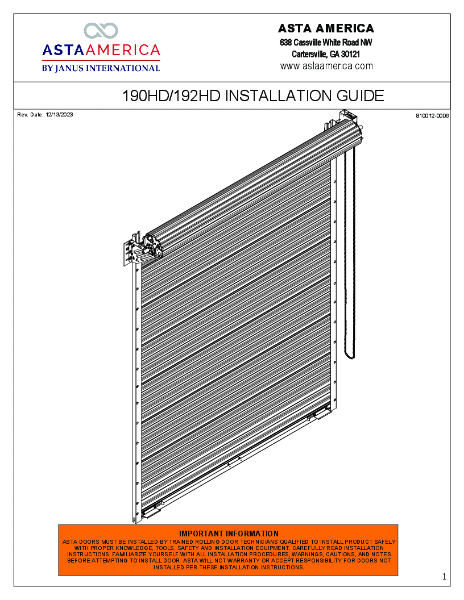

Series 190HD Installation Instructions

Series 190HD Installation Instructions
